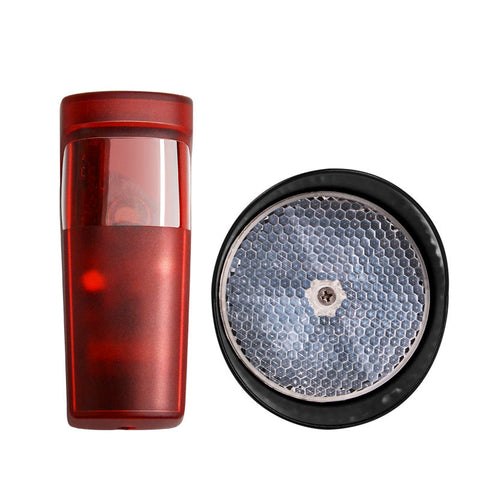

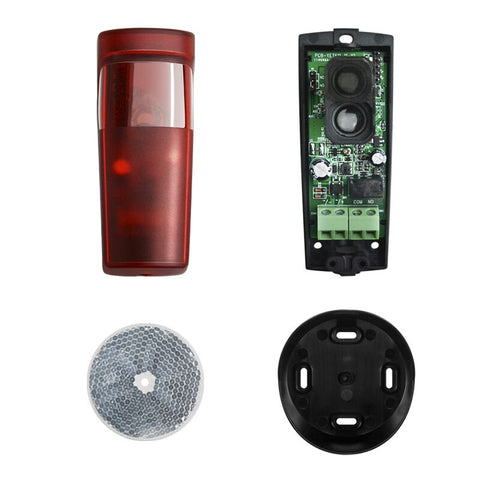

Infrared Safety Beam, Photocell With Reflector For Gate, Roller Shutter Door
12-24V Photocell Sensor Beam And Reflective Waterproof IPX4 Mirror With Cover
Great small photoelectric safety beam for automatic gates, roller shutter doors and other applications.
Wiring is only required on one side of the installation, the reflector on the other side bounces the infrared beam back to the photoelectric cell.
Very simple wiring with instructions enclosed.
12M Safety Detection Range This photocell retro reflective sensor offers reliable detection at up to 12M distances.
Waterproof design for outdoor use, can be used indoors.
Easy wiring and installation with NC, normally closed or NO, normally open connections.
|
Range
|
<12m
|
|
Wave length
|
740nm
|
|
Infra-Red Frequency
|
1.29khz
|
|
Power Supply
|
12-24 DC/AC
|
|
Input
|
RX 15mA-tx30mA
|
|
Operating Temperature
|
-10℃-70℃
|
|
Relay Output
|
1A max 36V
|
|
Installation Height
|
20cm
|
|
Installation Distance
|
<=2 meters
|
|
Material
|
ABS
|
|
Adjustable Angle
|
180 degree
|
