Safety Beam For Automatic Gates And Alarm Systems

  • £3000

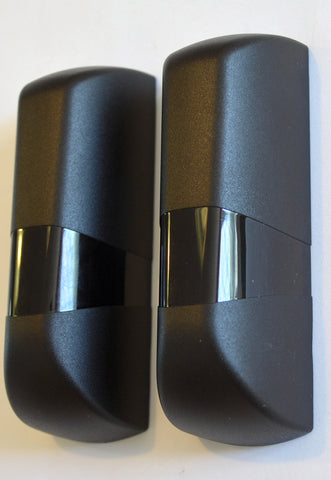

Universal Infrared Safety Beam Sensor With Battery Powered Transmitter.

Compatible with most gate automation systems and security alarm systems using relay photocells

Fully adjustable beams can be turned 180 degrees.

Can be used for automatic gates and automatic garage doors, home security, driveway alarms and other automation projects etc.

Simple installation as wiring is only required to the receiver beam. The transmitter beam is powered by 2 x 1.5v AAA batteries, supplied.

When the batteries are running low the receiver beam will start to give an audible beep.

Ideal for outdoor or indoor use with a range of approx 15 metres.

12v or 24v AC/DC power required for the receiver beam with a relay output of 1A max 36V

Normally open or normally closed contacts as standard

You will receive 1 x transmitter, 1 x receiver and fixing kit

Technical Specification:

  • Range: up to 15m
  • Relay Output: NO & NC
  • Infrared Frequency: 1.92Khz
  • Wave Length: 940nm
  • Relay output: 1A max 36V
  • Operating Temperature -10°C ~ + 70°C
  • Dimensions: 100mm X 40mm X 35mm
  • Operating Voltage:

      - Receiver - 12-24V AC/DC

      - Transmitter - 3VDC (2 x 1.5V AAA Batteries Supplied)

 Installation:

The best installation height should be more than 20cm, installation distance should be not less than 3m.

The beams should be mounted vertically and in the same horizontal line.

Install the receiver first then the transmitter, when lined up the OFF light of the receiver goes out.
